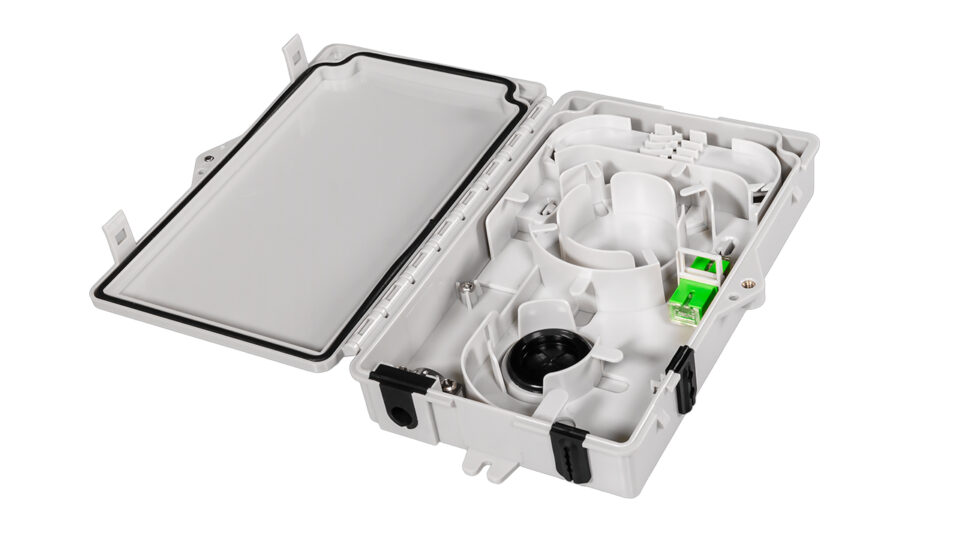

Enlighten FWO8EB: Smart and clean premise entry solution for easy installations
Our Enlighten FWO8EB Building Entry Enclosure has been designed to address the unique challenges of connecting private houses to fibre networks. Compact, durable, and aesthetically pleasing, it supports modern fibre installation techniques and makes an excellent fit for external mounting applications.
Defining the target Use Case
At suburbs or rural areas a pretty popular living form is to have a private house on your own (or rented) land. The house owners usually value good service also on their broadband networks being lucrative segment to approach by fibre to the home builders, especially when the population density or distances between users are not that well supported by wireless connectivity.
The microducted approach has been widely adopted for the last mile build strategy giving flexibility on the full network build and connecting end customers. This is especially the case in suburbs when connecting private houses to fibre networks as you want to distinguish the core network build from the build happening on customer premise or land.
You would like to be able to complete the network cable installation at single time when you have the team at site, so it makes sense to prepare the house demarcation point with microducts beforehand and simply blow or push the cables in place later at the same time with the core network build. Connecting the end customer can then be done separately and easily at a convenient time later.
Detailed Solution Requirements to achieve the Use Case
The solution should satisfy the need for an efficient private house demarcation point or premise entry enclosure. It is important that this interface can support all of the use case and installation requirements along with the physical elements of the fibre network. This could be done by conforming to all latest fibre installation techniques and adhere to best practices & industry requirements for fibre management and splicing. You would also value the enclosure being small, neat and aesthetically pleasing and fit for outdoor use in above ground installations.
For this specific use case you should make sure you can use it in microduct installations and that it support at least 1 adapter position for customer connections and splice only option as required by the fibre network build and provide sufficient entry points around the solution for different cable entries including directly through the back and through a premise wall. You should also make sure the design allows fixing to typical premise wall structures without damaging their surface.
The TEN-FWO8EB has been designed to meet these requirements in a smart and clean enclosure product.
TEN-FWO8EB Key Features and Benefits
The TEN-FWO8EB has been developed with the following main features, demonstrating its capability and benefits for used as private house demarcation point or premise entry enclosure.
- Product base designed to fit on uneven walls and provide airflow for the wall
- Entry port designed to give good support for microducts, and can be used with cables
- Microduct and cable diameters supported from 6mm-9mm.
- Location to securely fit a GAS block inside the enclosure of max dimensions 20x49mm
- 4 splice locations supporting heat shrink and ANT/Crimp models
- One slidable adapter position supporting 2 standard SC or LC Duplex adapters which are easy to access during install
- Cable entry ports on base, lower edge and side walls
- Cable entry ports have rubber glands which are easy to use when installing cables
- Cable entries support 4 x 2 mm cables and 2 x 3 – 5 mm cables
- IP66 rating
- Available in white, grey and black colours
Summary
The FWO8EB is a fibre entry enclosure suitable for multiple premises and with many features incorporated to support blown and pulled fibre installations. It is a smart and clean design that is suitable for external mounting applications and is easy to install and use.
