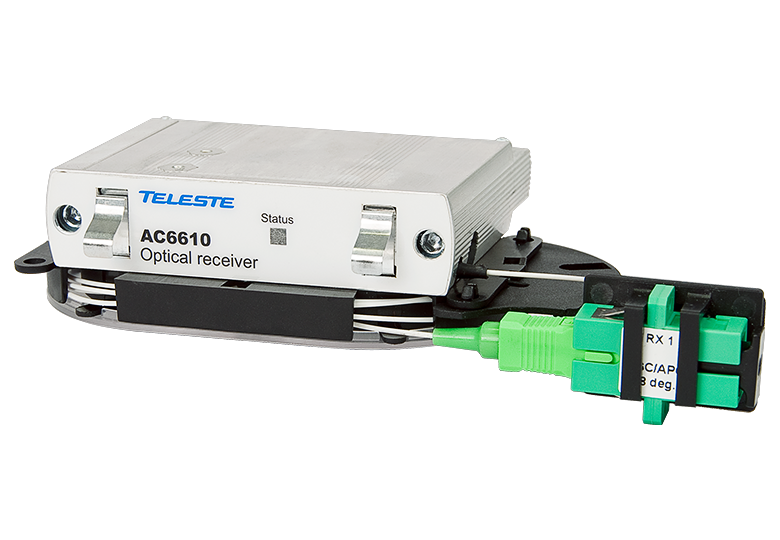

AC6610 Optical receiver
NOTE: This product has reached end-of-life status which means that it may no longer be supported and is not orderable from Teleste. Please see the end-of-life page in MyTeleste for more information.
The AC6610 is an optical receiver module with -7…0 dBm input level for Teleste’s ACcess platform. The performance and the features have been designed for the fibre to the curb and for the fibre to the building (FTTC/ FTTB) applications.
Features at a glance:
- Wide input power window with ALC function
- Low noise
- Low power consumption
- Output level adjustment
- Optical input power indicator
- Available also with integrated fibre organiser (AC6610B)
Product Specifications
Technical data
Light wavelength
1290…1600 nm
Optical input power
-7…0 dBm
Frequency range
47…1006 MHz
Output level
72.5 dBμV
Output level adjustment
20 dB
Flatness
±0.5 dB
Slope
0 dB
Noise current density
5.5 pA/√Hz
CTB
Adequate
CSO
Adequate
General
Supply voltage
12 V / 110 mA
Power consumption
1.3 W
EMC compatibility
EN 50083-2
Operating temperature range
-40…+55 °C
Storage temperature range
-30…+70 °C
Dimensions (h x w x d)
75 mm x 62 mm x 18 mm
Weight
90 g
Input connector
SC/APC, FC/APC or E-2000
